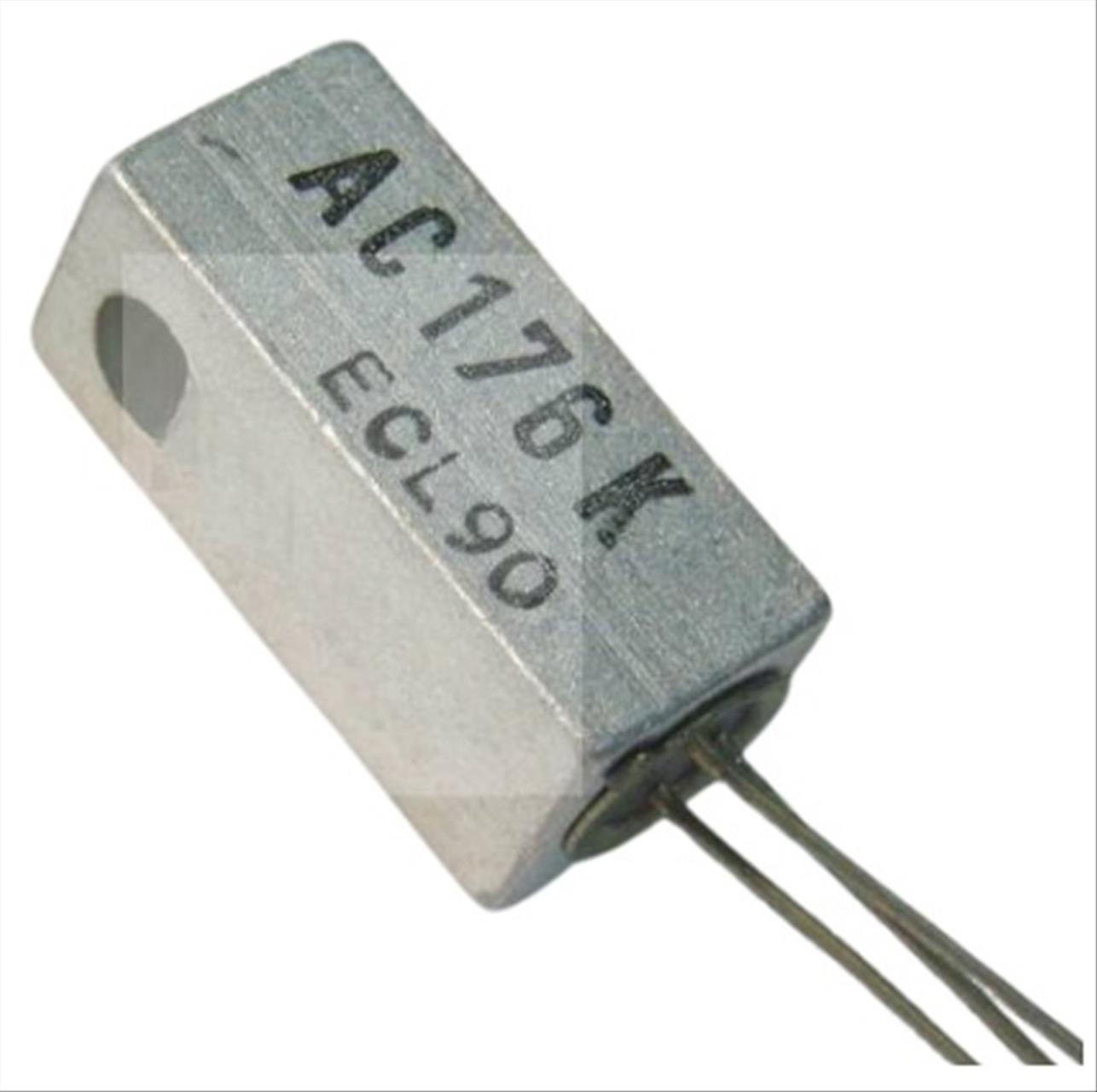

Τρανζίστορ AC176K

Περιγραφή

Type Designator: AC176 K
Material of Transistor: Ge
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 0.22 W
Maximum Collector-Base Voltage |Vcb|: 32 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 1 A
Max. Operating Junction Temperature (Tj): 90 °C
Transition Frequency (ft): 1 MHz
Collector Capacitance (Cc): 200 pF
Forward Current Transfer Ratio (hFE), MIN: 52
Noise Figure, dB: –
Package: TO1
